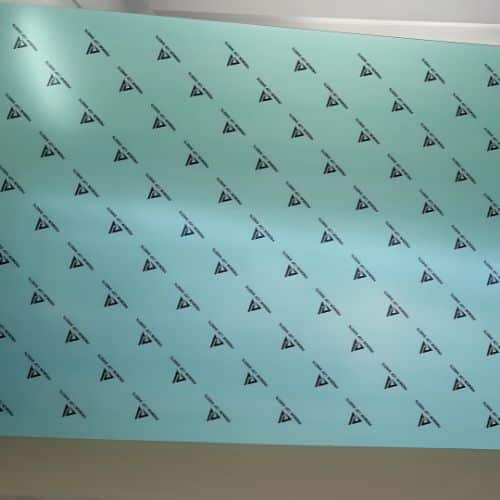

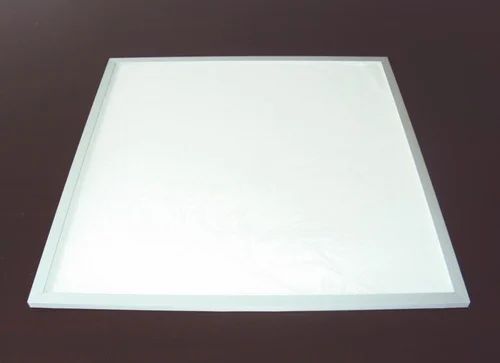

LGP Sheets (Light Guide Panels)

An LGP (Light Guide Panel) sheet is an optical-grade acrylic/plastic panel designed with a micro-pattern that distributes edge-lit LED light evenly across the surface.

The standard size is 8×4 ft, with common thicknesses of 2 mm, 3 mm, 4 mm, and higher upon request.

Prices begin at ₹1600 per sheet, depending on thickness, quantity, and customization.

The MOQ is 10 sheets to ensure batch consistency and competitive pricing.

Yes. LGP acrylic sheet is simply another name for Light Guide Panels made from optical-grade PMMA/acrylic.

Anupam Plastic supplies LGP sheets from Delhi, with dispatch options for nearby regions and project rollouts.

They are used in LED photo frames, clip-on LED frames, retail lightboxes, signage, menu boards, and architectural accent lighting.

While standard acrylic is clear, it lacks the patterned surface needed for edge-lit uniformity. LGP sheets feature micro-dots/lines that ensure even brightness and higher light extraction.

– Printed-dot: Budget-friendly, suitable for standard frames.
– Laser-engraved: Delivers tighter uniformity and brightness, ideal for premium displays.

Yes, cut-to-size panels are available to reduce wastage and speed up fabrication.

– 2 mm – Ultra-slim, smaller formats
– 3 mm – Standard frames and lightboxes
– 4 mm+ – Larger spans requiring extra rigidity

High-efficiency LED strips (e.g., 2835/5630) paired with aluminum heat sinks. Choose LEDs with the right CCT/CRI for your brand visuals, and ensure proper driver wattage.

Yes. A rear reflector recycles light, while a front diffuser smooths variations and protects graphics.

Maintain proper LED pitch, use two- or four-edge lighting for larger panels, and select an LGP pattern optimized for the panel size.

Yes. CO₂ laser cutting provides polished edges. Drilling should be done with acrylic bits at controlled feed rates to avoid cracking.

UV-stabilized grades are recommended for sunlight exposure. For indoor retail use, panels typically maintain clarity for a long time.

Use a microfiber cloth and an acrylic-safe cleaner. Avoid ammonia or harsh solvents that may cause crazing.

Thickness, pattern type (printed vs laser-engraved), order volume, cut-size needs, and delivery logistics.

Yes. With stocked inventory, batch consistency, and phased dispatch, uniform results can be delivered across multiple locations.

They provide imported, optical-grade LGP acrylic with consistent brightness, clear pricing from ₹1600/sheet, practical MOQs, cut-size options, and expert guidance on LEDs and films—ensuring efficient, premium builds.
